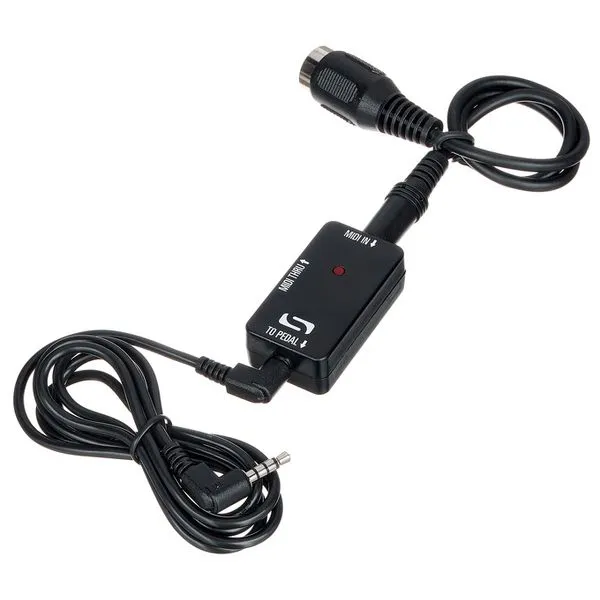

The Source Audio SA168 MIDI Adapter provides full MIDI functionality to all single-footswitch One Series pedals including the C4 Synth, Aftershock Bass Distortion, Atlas Compressor, and Spectrum Intelligent Filter. The MIDI Adaptor is a compact, bus-powered, intelligent adapter compatible with any standard MIDI Controller with a 5-pin MIDI DIN output. Use MIDI program change (PC) messages to switch presets and MIDI continuous controller (CC) messages to quickly change parameter settings or move parameters on-the-fly with an expression pedal. Use MIDI clock messages to set LFO modulation and sequencer rates.

MIDI Adapter

• - Connects MIDI devices (DIN or TRS) to Source Audio pedals
• - Works with all pedals of the Source Audio One series
• - Works with all standard MIDI devices
• - Sends MIDI PC commands to switch presets and MIDI CC commands to change parameter settings or move parameters with an expression pedal
• - MIDI THRU output, for forwarding messages to another MIDI adapter and a source audio pedal
• - Connectors: MIDI in, MIDI out (to pedal), MIDI thru
• - No power supply required - self-powered via the control input jack
• - Dimensions (L x W x H): 48 x 25 x 16 mm
• - Weight: 14 g
• - Incl. cable MIDI DIN to TRRS MIDI 3.5 mm mini jack (approx. 42 cm) and cable with TRRS 3.5 mm mini jack on both sides (approx. 100 cm)
